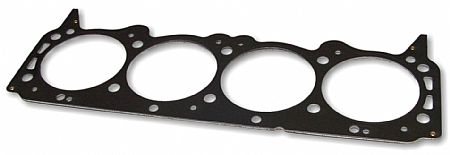

The latest in cylinder head gasket technology. Multi-layer design seals against high cylinder pressures such as with high compression and boosted/nitrous combinations.

EXAMPLE: 455 bored .038” (4.350” bore), Stage 1 or 2 Aluminum heads (65 cc’s), Spherical Pistons (20 cc’s), pistons .015” below the deck surface.

With TA 1725 gasket in the following sizes:

.027” = 10.96:1 CR
.031” = 10.86:1 CR
.038” = 10.68:1 CR
.040” = 10.63:1 CR
.045” = 10.51:1 CR
.051” = 10.30:1 CR
.067” = 10.02:1 CR
.078” = 9.79:1  CR


~Please Specify Thickness~
